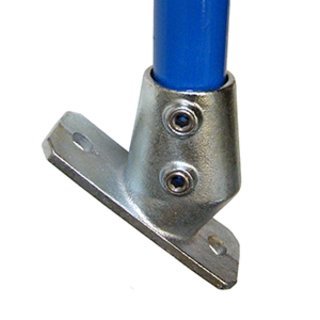

Base flange for sloping sites, adjustable from 30° to 45°. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design. Where a greater load is required, type 132 is normally used, with the upright tube bent to the required angle.
Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. The dimensions of the base are designed to be compatible with many traditional welded ball standard bases to allows easy interchangeability.
Dimensions for 33.7mm and 42.4mm to follow.
The tubes are shown in blue for marketing purposes only, to show the detail on the clamps.
All our clamps are supplied complete with grub screws. Additional replacement screws can also be purchased click here
Please note the through bolt, thunder bolt and 12mm SDS drill bit are NOT suitable for use with 26.9mm tube clamps.
Important: This product contains fixing holes. We do not recommend pre-drilling prior to receiving the product as there can be irregularities in casting that can produce small variations in the size of the holes. Any measurements shown should be regarded as a guideline only.
