Swivel Locating Flange - 169

TMS Express Delivery

Next day delivery on over 3000 products.

Unlimited Free Cutting

Tell us your requirements. We do the rest.

Select your delivery date

If you want it sooner, if we can, we will.

Bulk discounts on all orders

Up to 10% on orders over £1,500.

A versatile swivel fitting, useful for fixing angled tubes to walls etc. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. The assembly is riveted together, although items can be supplied separately as 169M and 173F.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

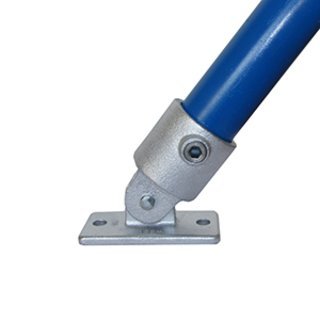

The tubes are shown in blue for marketing purposes only, to show the detail on the clamps.

All our clamps are supplied complete with grub screws. Additional replacement screws can also be purchased click here

Please note that the galvanised tube we stock goes into the fittings by approximately 25mm to 30mm. This figure is for guidance only.

Please note the M0 x60 thunder bolt is NOT suitable for use with 26.9mm tube clamps.

Important: This product contains fixing holes. We do not recommend pre-drilling prior to receiving the product as there can be irregularities in casting that can produce small variations in the size of the holes. Any measurements shown should be regarded as a guideline only.

Please scroll the page to ensure you see the full list of products available

Description	Weight	Dimensions					Price (Ex VAT)	Price (Inc VAT)	Quantity
Description	Weight	A	B	C	D	E	Price (Ex VAT)	Price (Inc VAT)	Quantity
Interclamp Swivel Locating Flange 26.9mm tube diameter - 169 £6.50 ex VAT £7.80 inc VAT	0.67 kg	61.0	112.0	85.0	93.0	52.0	£6.50	£7.80
Interclamp Swivel Locating Flange 33.7mm tube diameter - 169 £6.38 ex VAT £7.66 inc VAT	0.74 kg	61.0	112.0	85.0	93.0	52.0	£6.38	£7.66
Interclamp Swivel Locating Flange 42.4mm tube diameter - 169 £7.26 ex VAT £8.71 inc VAT	0.85 kg	69.0	112.0	85.0	98.0	52.0	£7.26	£8.71
Interclamp Swivel Locating Flange 48.3mm tube diameter - 169 £8.10 ex VAT £9.72 inc VAT	0.89 kg	77.0	112.0	85.0	109.0	52.0	£8.10	£9.72
Interclamp Swivel Locating Flange 60.3mm tube diameter - 169 £13.06 ex VAT £15.67 inc VAT	1.21 kg	89.0	112.0	85.0	121.0	52.0	£13.06	£15.67
M8 x 75 Ankerbolts (Thunderbolt) x 2 suitable for use with tube clamp 169 & 169M £1.50 ex VAT £1.80 inc VAT	0.07 kg						£1.50	£1.80
SDS 8mm x 160mm drill bit £2.88 ex VAT £3.46 inc VAT	0.06 kg						£2.88	£3.46
